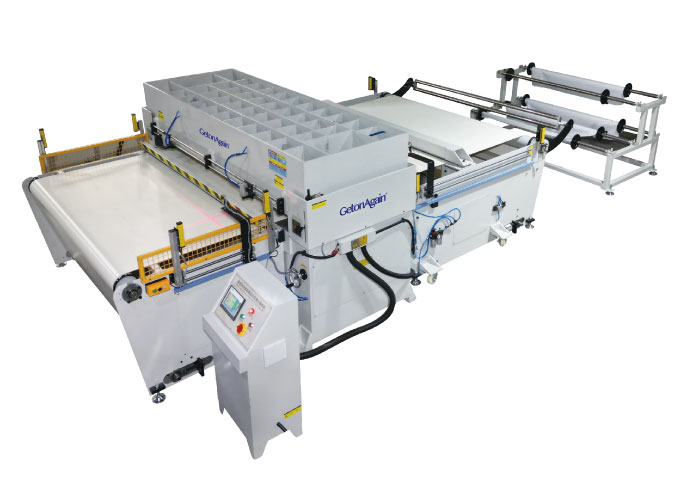

Automatic Die-cutting Machine

Suitable for cutting sunroof shade fabrics and PET material products for automobiles, with a single shade fabric thickness ranging from 0.25mm to 1mm.

Brochure Download

Online Service

Please wait a moment. The video is loading...

Equipment Advantages

System is controlled by PLC cooperating with the touchscreen human-machine interface. Parameters can be set individually for different products, and the system has a reminder function for knife mold replacement.
Working direction is equipped with a safety light curtain, and the die-cut area is equipped with a safety shield to ensure operational safety.
No Burrs or Incomplete Cuts After Cutting: The worktable remains clean, ensuring no contamination of the fabric.
Supports Two Modes:
1. After pressing the manual button, automatic single-side "feeding + output"
2. After pressing the manual button, one side automatically feeds while the other side automatically outputs.

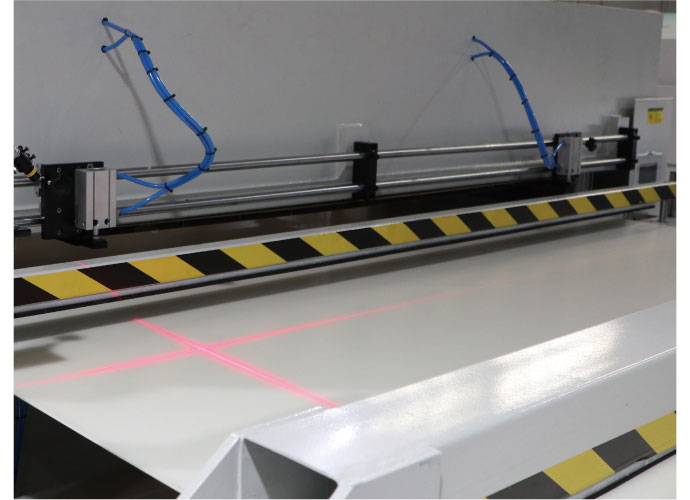

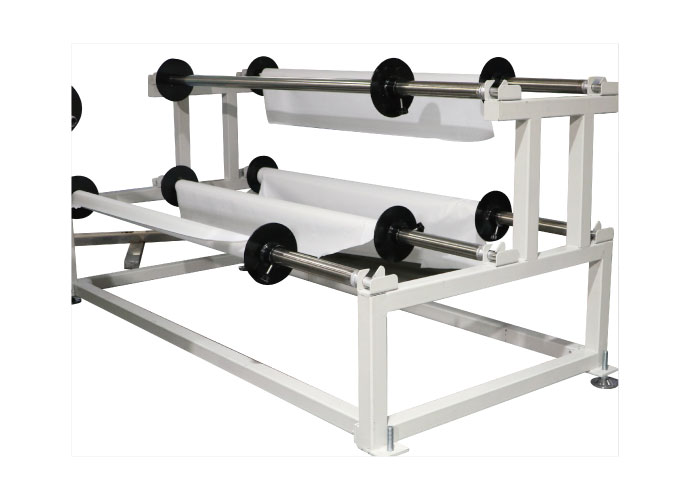

Material Feeding System (for continuous feeding): Driven by a servo motor, conveyor belt with pneumatic clamps operates automatically. Equipped with a deviation correction mechanism to ensure the edge alignment deviation ≤ 5mm. And the feeding direction deviation ≤ 2mm. (excluding material elasticity and rebound).

Equipment Models

Model	Working Area (mm)	Machine Installation Size (L×W×H)
GOAFP-NM-SKC-1-1000×2000-SGSF-K-AF-3P380	Cutting Size:1000mm×2000mm	6500mm×3200mm×1650mm
